Cabin details Red Submarine

Red Submarine

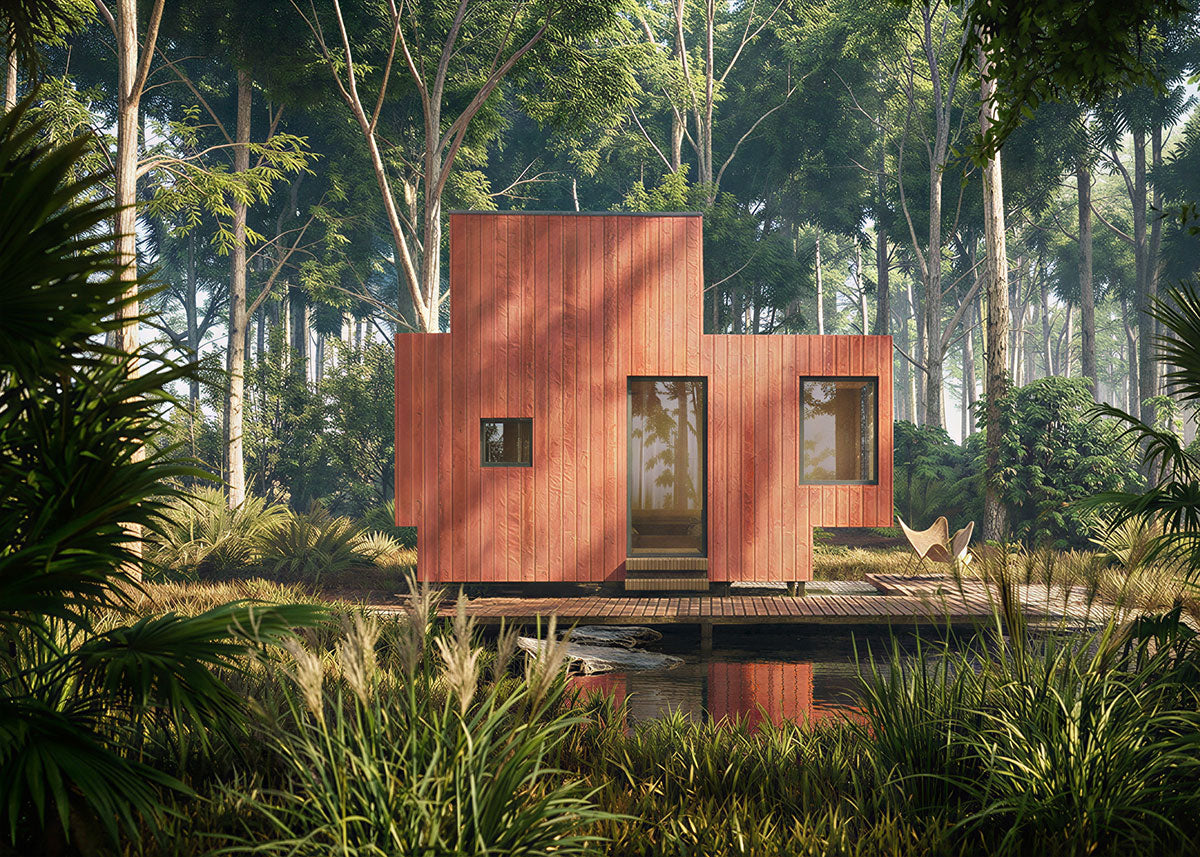

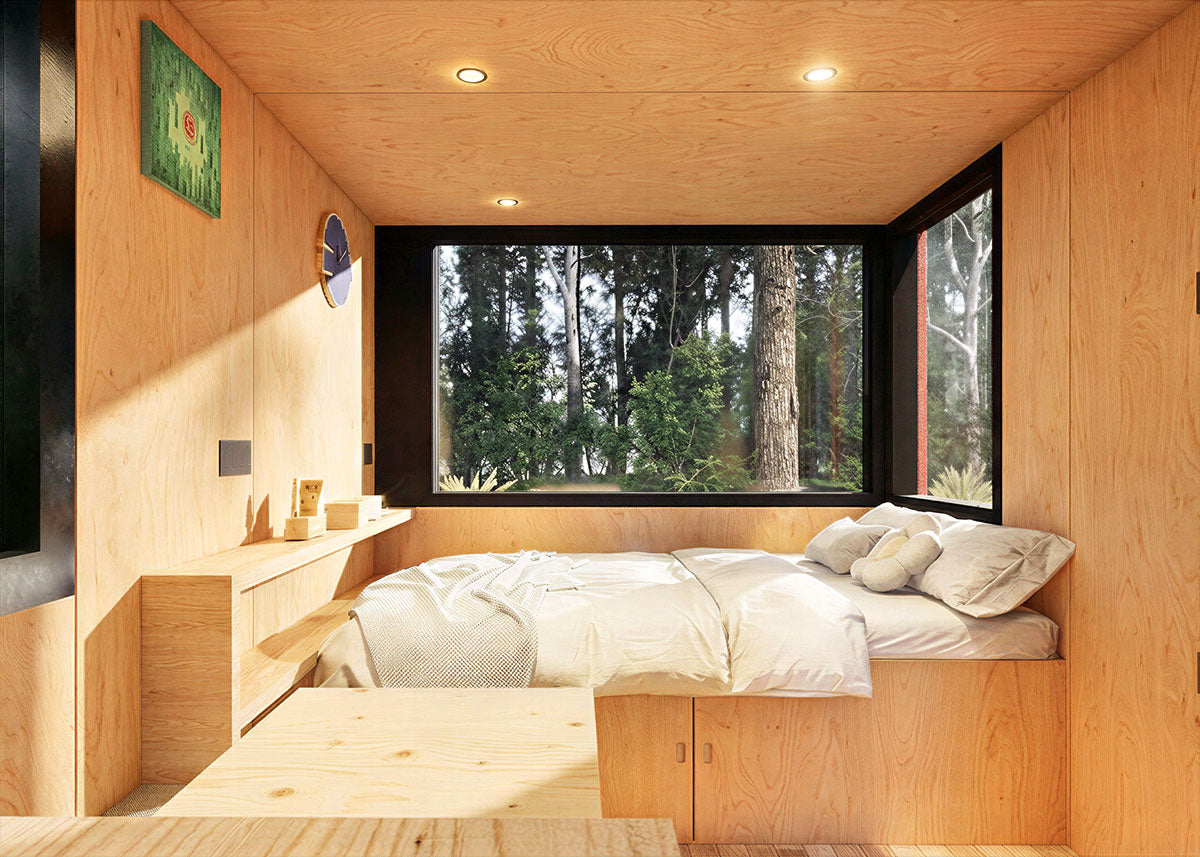

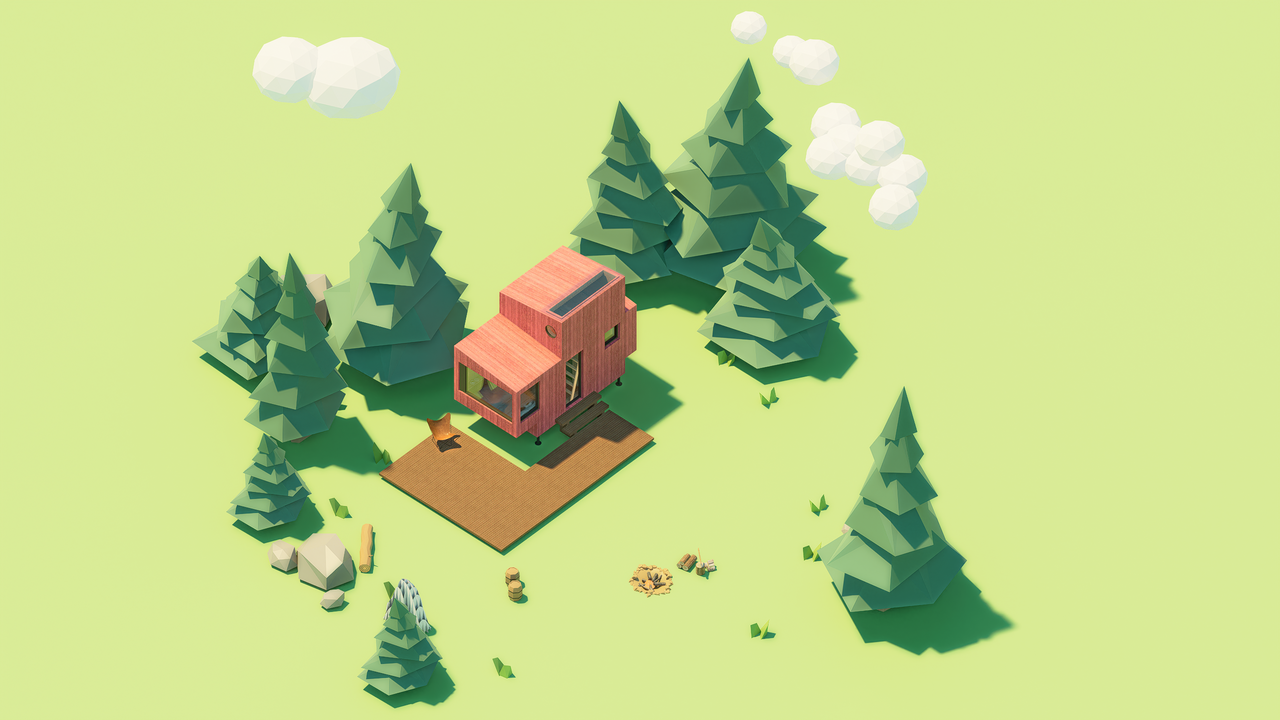

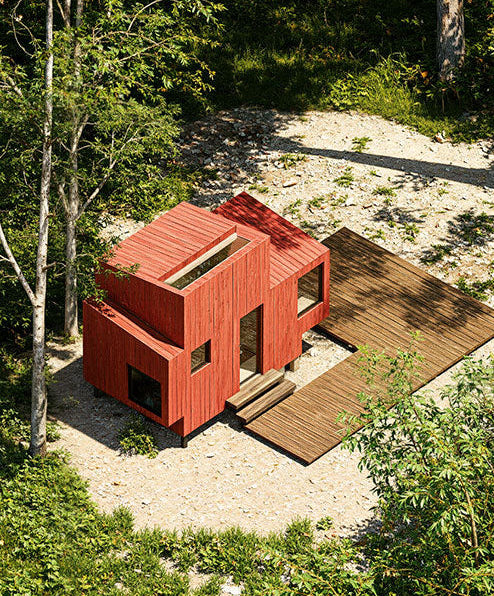

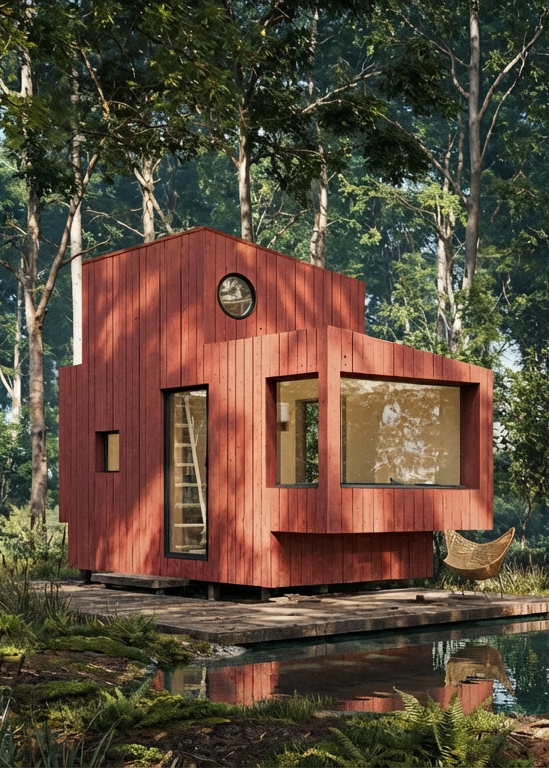

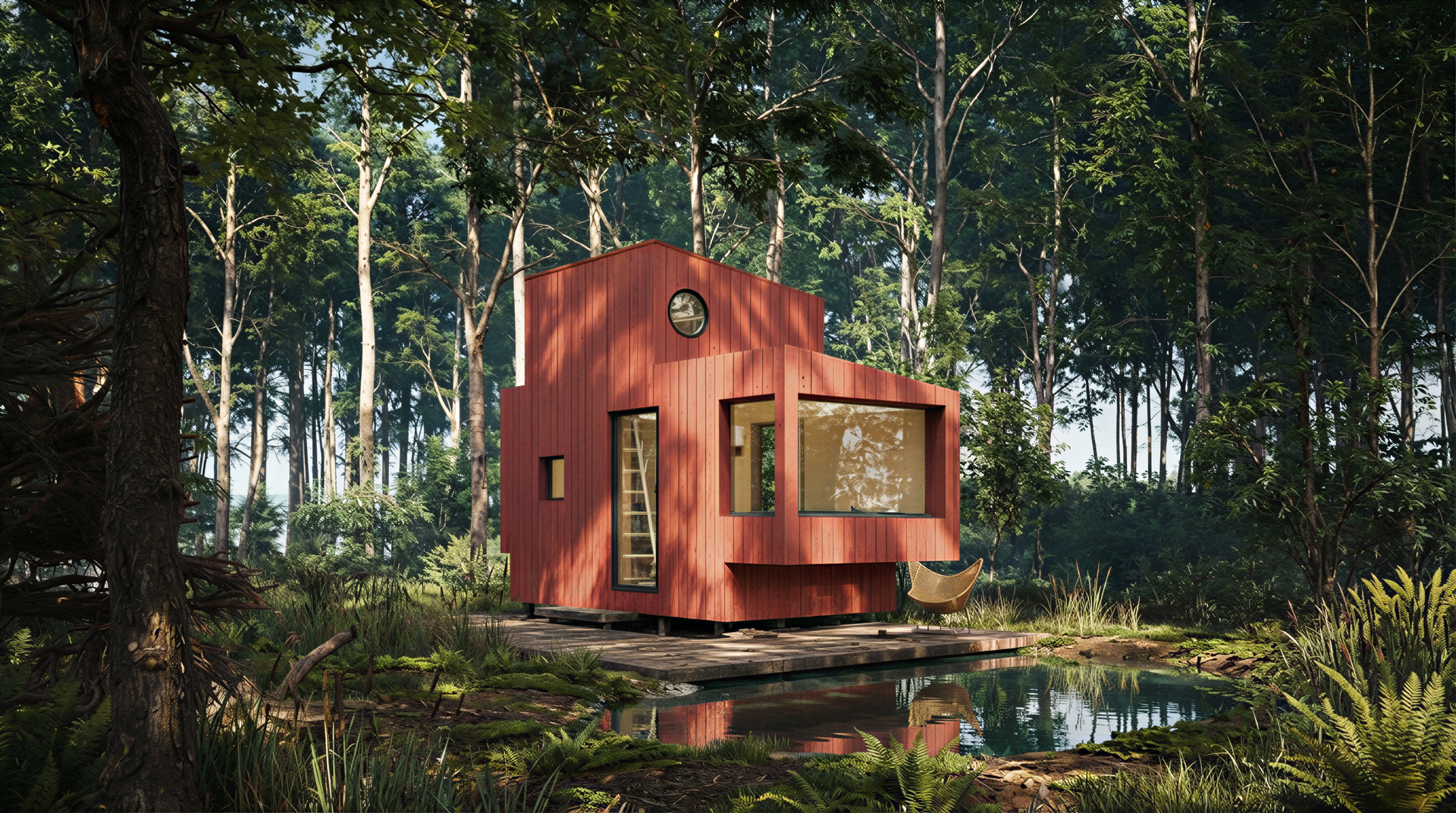

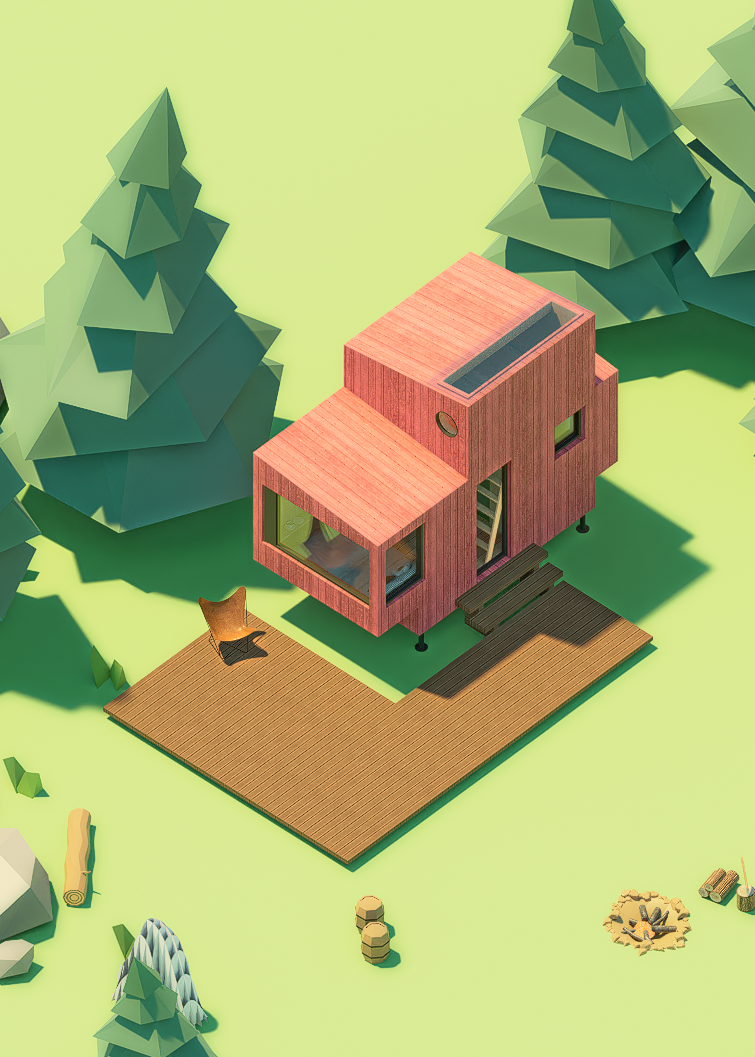

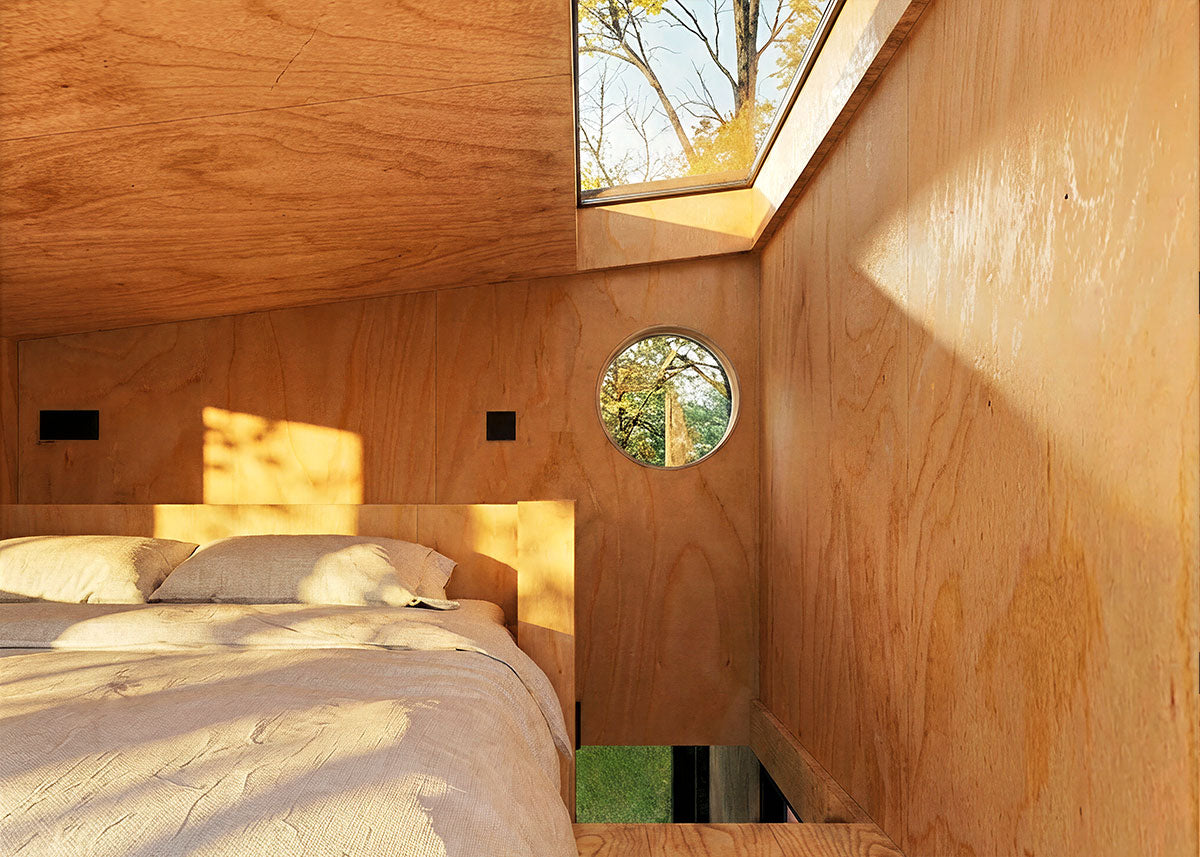

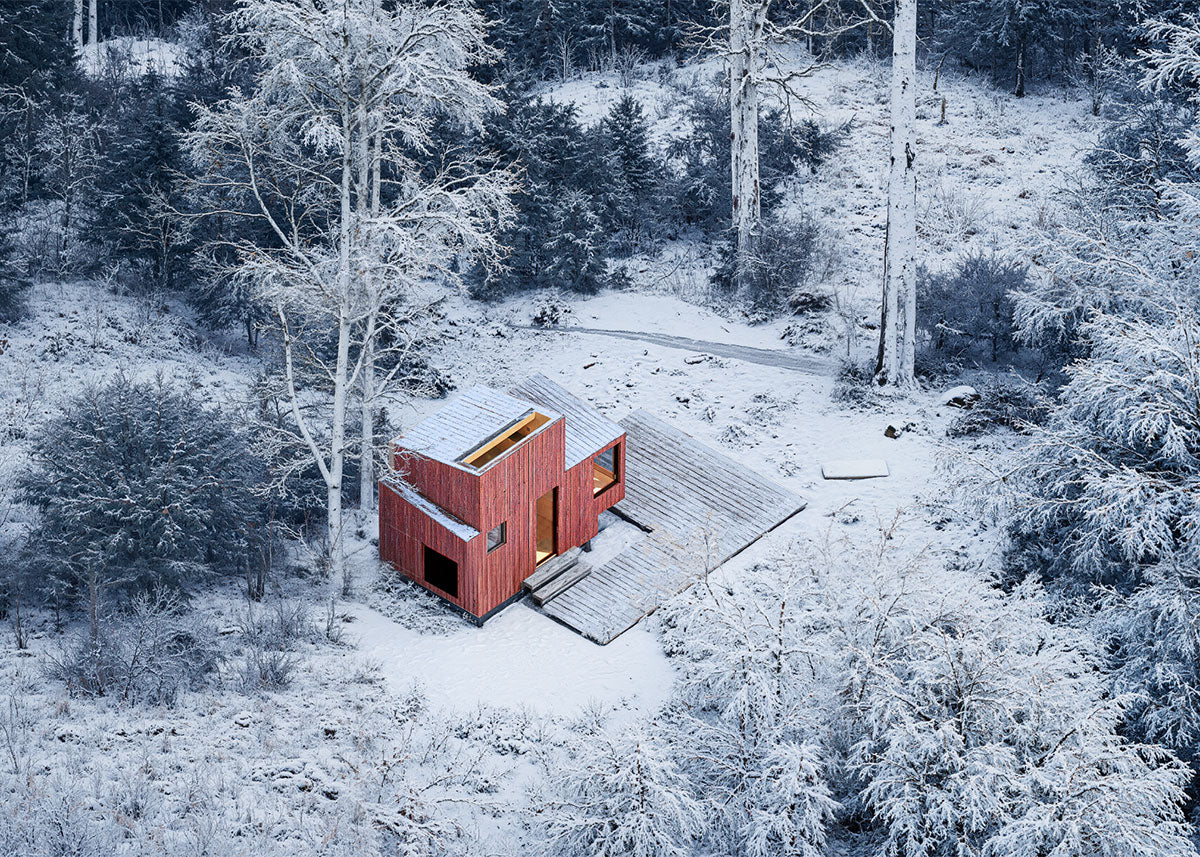

Using the “submarine” as a visual symbol, this mechanical vessel of the industrial age is placed into the natural forest. Like a submarine diving into the deep sea, it becomes an “emotional harbor” where urban people retreat into the woods. After being manufactured in the factory, it is transported to the site. Once positioned and secured, it only needs water and electricity connections to be ready for use. The cabin layout features a loft bedroom and a ground-floor daybed with two sleeping areas, along with a bathroom, meeting the needs of family users.

Technical Specifications

Size:

Area: Total floor area approx. 215 sq. ft. (20 m²).
Building footprint approx. 140 sq. ft. (13 m²).
Metric: 5.2m (L) * 2.3m (W) * 3.9m (H).
Imperial: 17ft (L) * 7.5ft (W) * 12.8ft (H)
Interior Clearance: 1st Floor approx. 2m (6.5ft); 2nd Floor Loft approx. 1.2m (3.9ft).

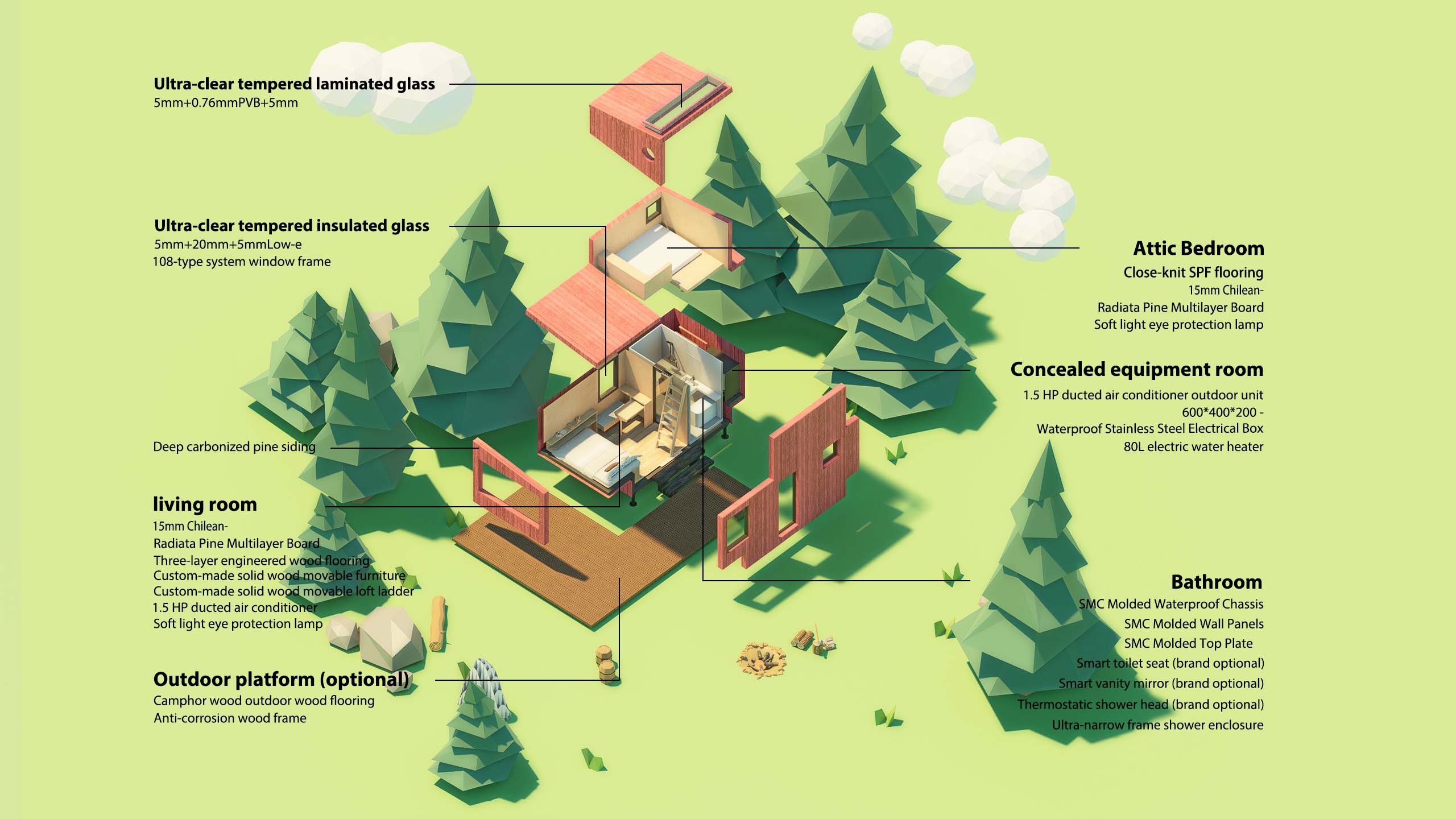

Material:

Interior finish: 15 mm Chilean radiata pine multilayer interior panels
Insulation material: Polyurethane insulation layer (R-value reaches about 6.0 to 7.0 per inch)
Window material: Ultra-clear tempered insulated glass 5 mm + 20 mm + 5 mm Low-E, 108 series thermal break aluminum window frame with integrated screen
Wall material: Deep carbonized Scots pine exterior cladding panels
Waterproofing material: Rothoblaas waterproof and airtight system
Flooring material: Three-layer engineered solid wood flooring

Weight:

The log cabin weighs approximately 6 tons and has four point foundations, each with a recommended bearing capacity of 20 kN.

Included Amenities:

Electrical: Pre-installed circuits (sockets, switches, flexible eyeprotection lighting), breaker box; Air conditionin.
Electric heater; Exhaust fan; Water heater.Plumbing: Pre-installed bathroom piping and connection ports.

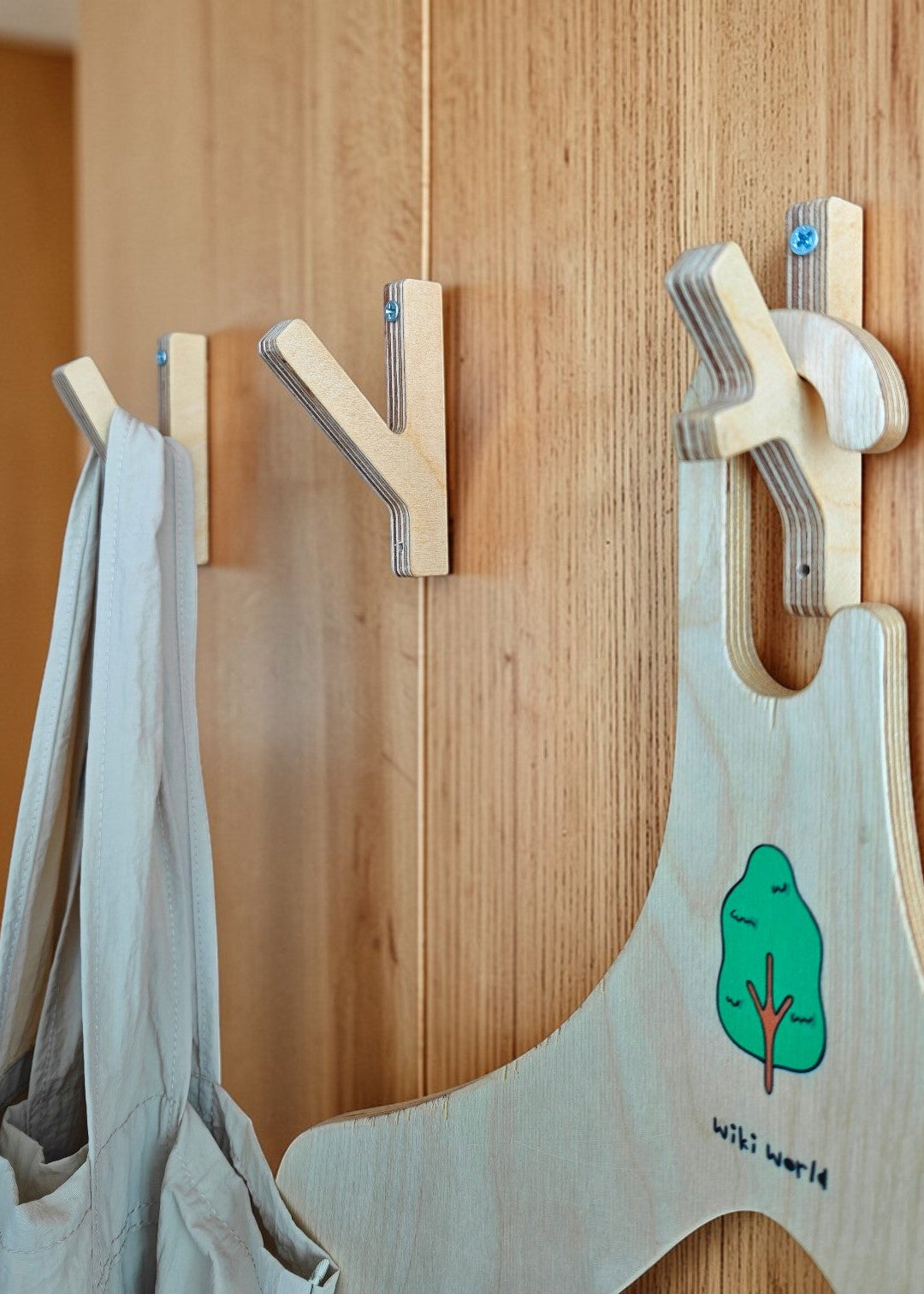

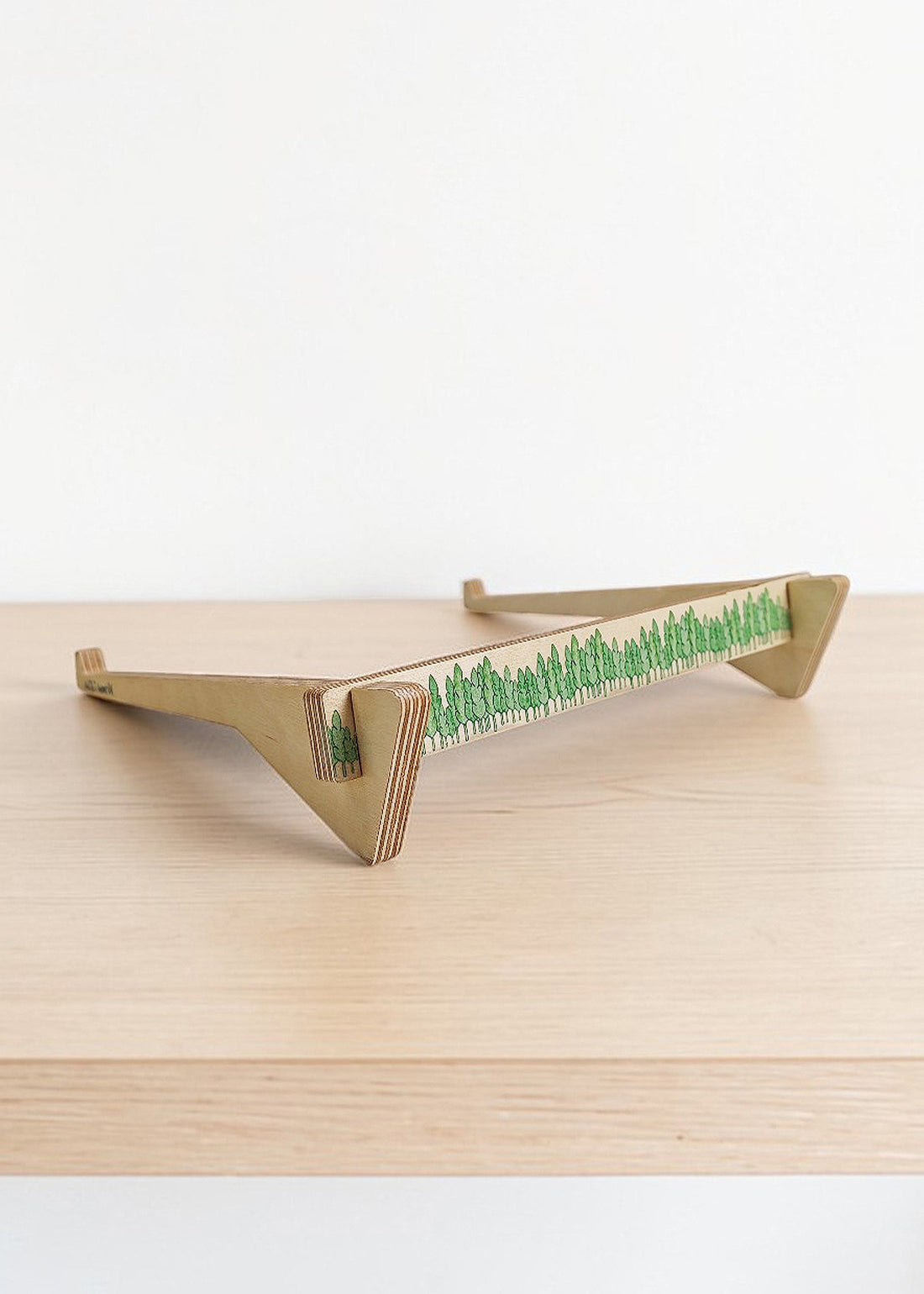

Furniture: 1.5m * 2m bed, 1.2m * 2m bed, lounge chair, shelving units, folding table, ladder, "Scraps Series" furniture.
Sanitary Ware: Smart toilet, shower head, integrated rock-beam basin, faucet.

Introduction to main materials

Chilean Radiata Pine Multilayer Interior Panels

Natural grain, stable structure, eco-friendly, and warp-resistant for a warm indoor feel.

Deep Carbonized Scots Pine Cladding

High-temperature treated for enhanced durability, moisture resistance, and a refined dark look.

Ultra-Clear Tempered Insulated Glass

Thermal break aluminum system ensures excellent insulation and a quiet, energy-efficient space.

Waterproof and Breathable Membrane System

Advanced sealing and membranes maintain airtightness, prevent leaks, and stabilize indoor humidity.

Ordering process

Request A Quote➝

1. Consultation:

Contact us if you're interested in a cabin, you may provide:
a. Buyer type (individual, developer, or contractor)
b. Site details (location, size)
c. Climate data
d. Intended use (personal, rental, etc.)
e. Purchase intent
f. Local and national building regulations

2. Customization:

For customized options such as exterior cladding colors, insulation configurations, and other specifications, please contact us by email prior to reservation.

3. Reservation:

After selecting the product, place the order online and sign the contract.

4. Construction period:

It usually takes 8-12 weeks.

5. Delivery:

Transportation and simple assembly or direct placement upon arrival

Shipping & Delivery

Delivery method:

The cabin is shipped in a container and delivered by flatbed truck to the site. The buyer handles unloading, and the empty container is then returned to the port.

Shipping cost:

Shipping costs are not included in the listed price. Please provide your postal code to obtain a shipping quote.

Shipping costs typically include：

Ocean freight
Origin charges (Origin Charges)
Destination charges (Destination Charges)
Inland transportation from the port to the project site

Uploading:

The buyer is responsible for unloading the goods using a crane on site and connecting them to the pre-prepared foundation.
